For anyone who lives and breathes diesel engines, especially the robust Duramax L5P, understanding its intricacies is key to optimal performance and longevity. Alliant Power hosted a fantastic webinar featuring industry expert Tony Salas, who shared invaluable diagnostic tips that go beyond just pulling codes. This isn’t just a video for mechanics; it’s a deep dive for anyone who wants to truly understand their L5P.
Tony’s core message? A structured diagnostic approach and a commitment to staying current with evolving diesel technology are non-negotiable. Here’s a breakdown of some critical insights from his presentation:
The Foundational Principles of L5P Diagnostics
Before even thinking about a specific issue, Tony emphasized key foundational knowledge:
- Master Modern Systems: A solid grasp of aftertreatment systems – including DPF loading, SCR resets, and the chemical process of DEF fluid – is crucial. Understanding how these systems work is the first step to diagnosing problems effectively.
- Structured Approach & Resources: Don’t just guess! Follow a structured diagnostic plan. This means having access to quality service information and being able to read complex diagrams efficiently.
- Electrical Proficiency: Modern engines are heavily reliant on electrical systems. You need to be proficient in electrical diagnostics, including voltage drop testing, and know how to effectively use multimeters and scan tools.
- Back to Basics: Always start with the simplest checks, like inspecting the air filter. Remember, many engine issues can have a ripple effect on the aftertreatment system.
L5P Specifics: What Makes It Unique?

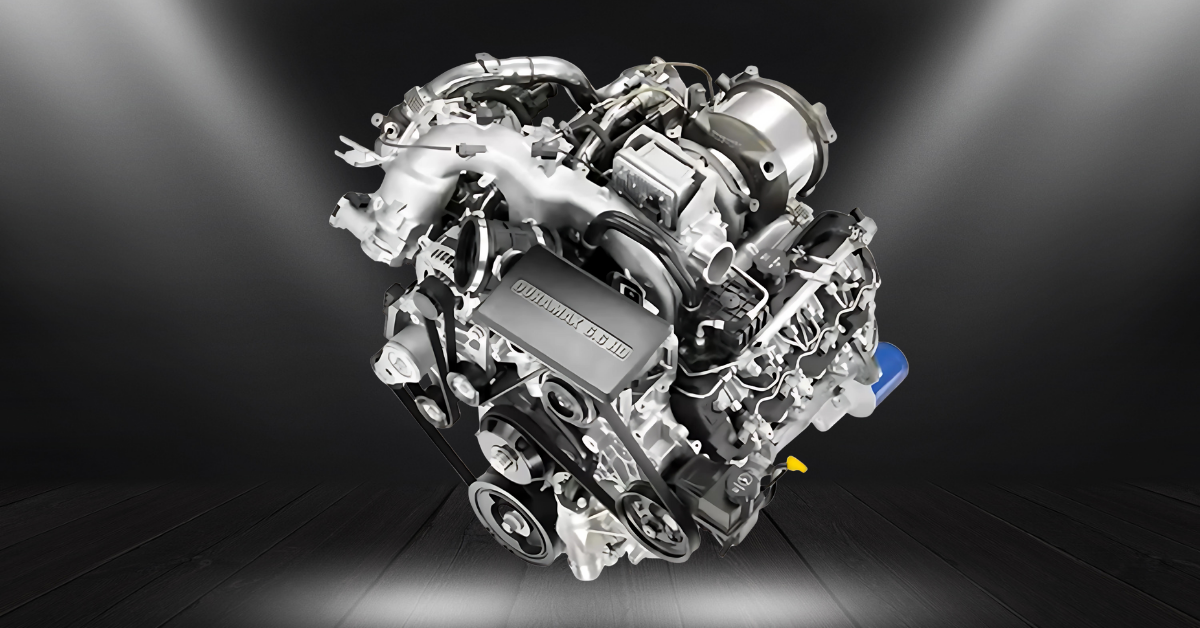

Introduced in 2017, the L5P features a Denso common rail injection system with solenoid-style injectors, a significant departure from the Bosch Piezo system found in earlier LMLs. This difference alone requires a tailored diagnostic approach.
Key Diagnostic Areas & Common Culprits
Tony highlighted several areas where L5P issues often surface:
Fuel System Insights:
- Fuel Quality is King: Inconsistent and contaminated diesel fuel is a primary cause of common rail problems. System cleanliness is paramount to preventing premature pump failure.
- Injector Programming is a Must: Always program new injectors using the IQA code. This isn’t optional; it’s vital for correct fuel delivery.
- Pressure Sensor Pigtails: Be aware of common issues with the fuel rail pressure sensor pigtail – updating it with dielectric grease is often a necessary fix.
- Indirect Injector for Regen: The indirect injector, crucial for DPF regeneration, uses lift pump pressure. If regen temperatures aren’t met, perform flow/volume tests on this component.
Maintenance & Electrical Considerations:
- Valve Lash & Oil Changes: Regular valve lash adjustments are vital, especially during injector work. Also, given the L5P’s high tow capacities, shortening oil change intervals can prevent excessive blow-by and DPF loading.
- Alternator & Network Diagnostics: Understand how the BCM and ECM control alternator output. Proficiency in network diagnostics (CAN, LIN) and understanding the Serial Gateway Module’s role is increasingly important.
- Challenging Sensors: Newer sensors like NOx and particulate matter sensors perform self-diagnostics, making their testing challenging. Focus on power and ground to their modules.
Decoding Trouble Codes & Sensor Behavior:
- Beyond the Code: Don’t just read the DTC; understand its description, the conditions for it to run, and the conditions for it to set. Know the difference between Type A and Type B codes.
- Post-Repair Resets: Always perform necessary resets after repairs, such as the fuel injection small quantity data reset after replacing fuel pressure sensors.
- MAP Sensor Fouling: A carbon-fouled MAP sensor is a common cause of injector timing/quantity codes. Inspect, clean, or replace it as needed.
- Misfire Data: Even if a misfire isn’t felt, check misfire data on your scan tool. It can pinpoint a problematic injector.
- Fuel Adaptation: Codes related to injector quantity/timing (e.g., P01D0) often require specific deceleration events to set. Fuel adaptation resets can sometimes resolve these, especially if linked to NOx sensor readings.
Aftertreatment System Nuances:
- Four-Stage System: The L5P features a sophisticated four-stage aftertreatment system: DOC (post-turbo), SCR, another DOC, then DPF.
- Forced Regen & SCR: Crucially, a forced regeneration does not heat the SCR assembly on an L5P. Driving the truck hard is often necessary to get the SCR to optimal temperatures for proper function.
The Bottom Line
Tony Salas repeatedly stressed that these are just “tips” – comprehensive training is truly essential for effectively diagnosing modern diesel engines. However, by understanding these key areas and adopting a structured approach, you’ll be well on your way to mastering Duramax L5P diagnostics and ensuring your engine runs smoothly for miles to come.
For the full detailed breakdown, be sure to watch the complete webinar:
